Description

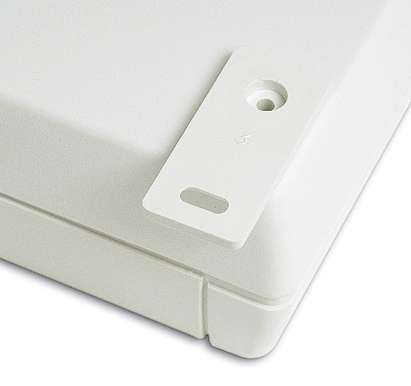

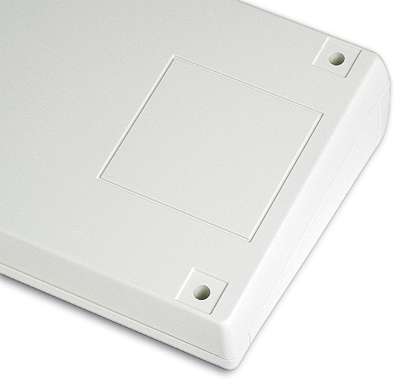

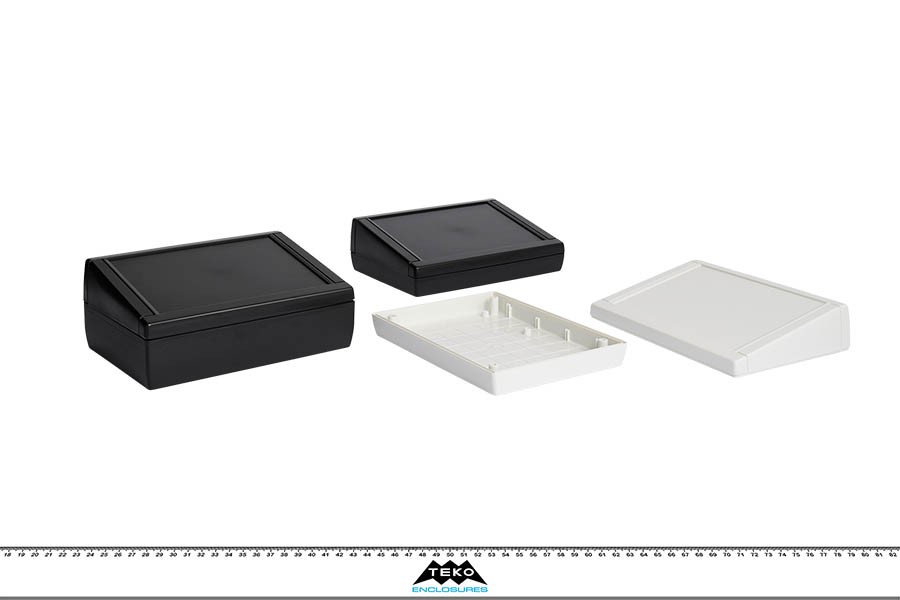

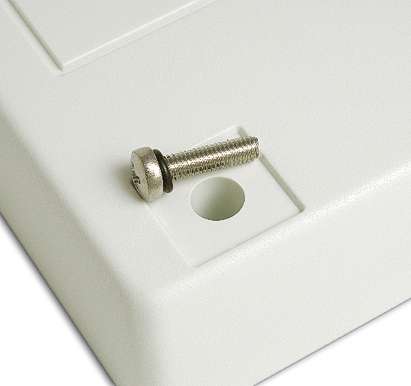

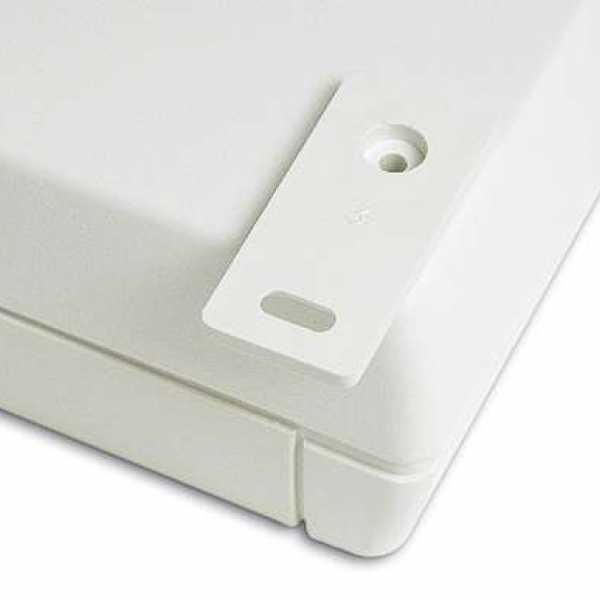

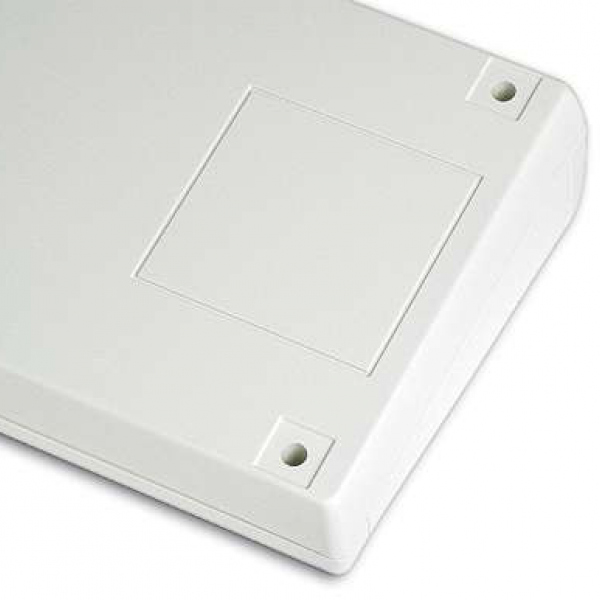

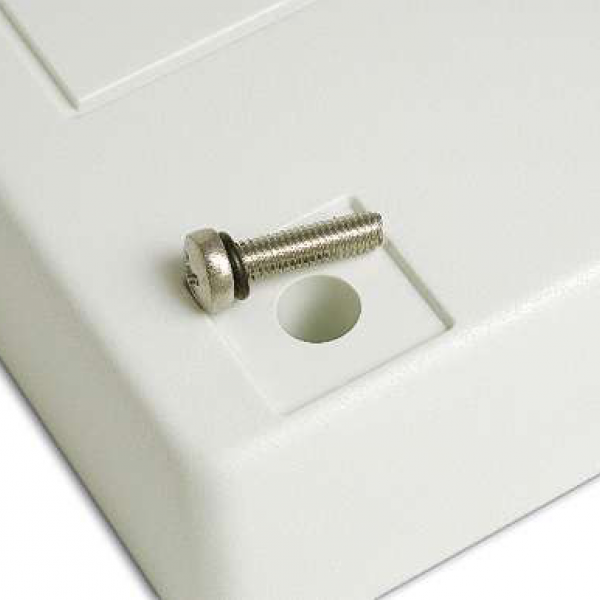

ABS enclosures with a 1.8 mm recessed area suitable for a keypad membrane or an aluminium panel. Base and cover have integral PCB guides (Eurocard 100 x 160 mm) and mounting studs. Matt surface finish. The models with “KK” have an IP65 sealing kit. Closing by four screws. Upon request aluminium panel (Mod. APTK), ABS wall mounting tabs (Mod. MT2).
Details
Products
| Model | L (mm) | W (mm) | H (mm) | Color (Ral) | Material | MAX PCB L (mm) | MAX PCB W (mm) | Screws | Battery | Accessories | Drawings | Other | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

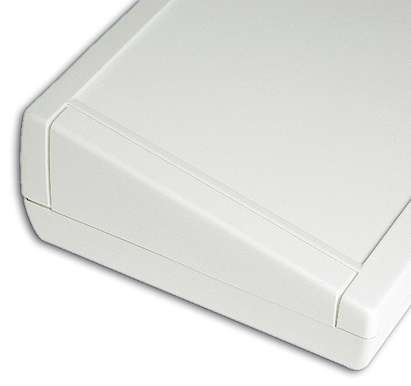

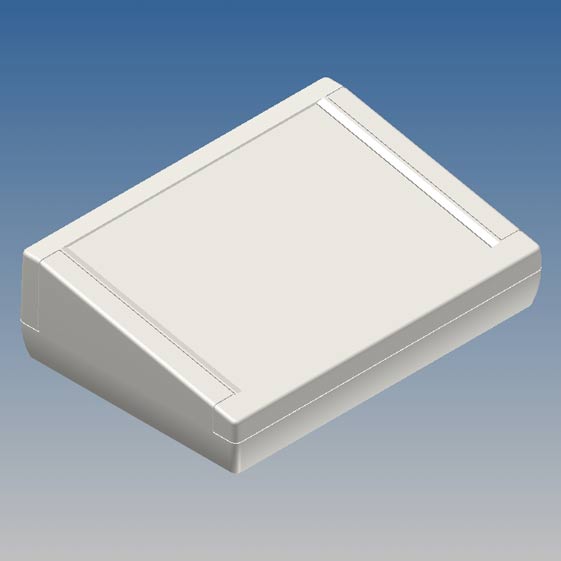

TK11SP.7 | 188,5 | 133,5 | 56,5 |
9002 |
L320 | 176 | 119 | 4 | - |
APTK MT2 |
PDF DWG |
|
|

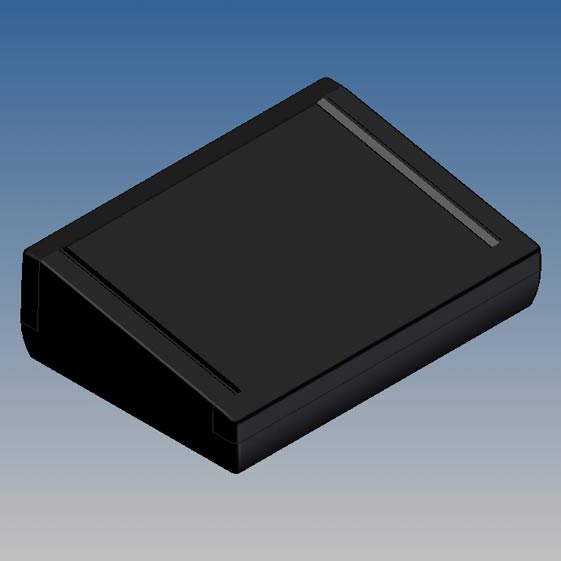

TK11SP.9 | 188,5 | 133,5 | 56,5 |
9004 |
P2H-AT | 176 | 119 | 4 | - |
APTK MT2 |
PDF DWG |
|
|
TK33SP.7 | 188,5 | 133,5 | 76,5 |
9002 |
L320 | 176 | 119 | 4 | - |
MT2 |
PDF DWG |
|
|

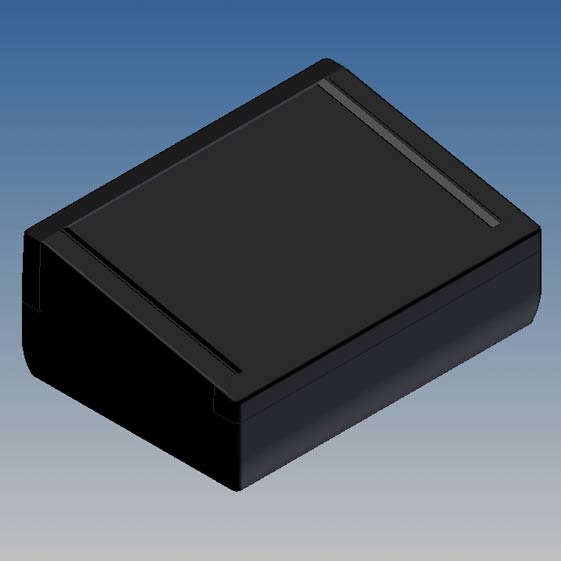

TK33SP.9 | 188,5 | 133,5 | 76,5 |
9004 |
P2H-AT | 176 | 119 | 4 | - |
MT2 |
PDF DWG |
|
|

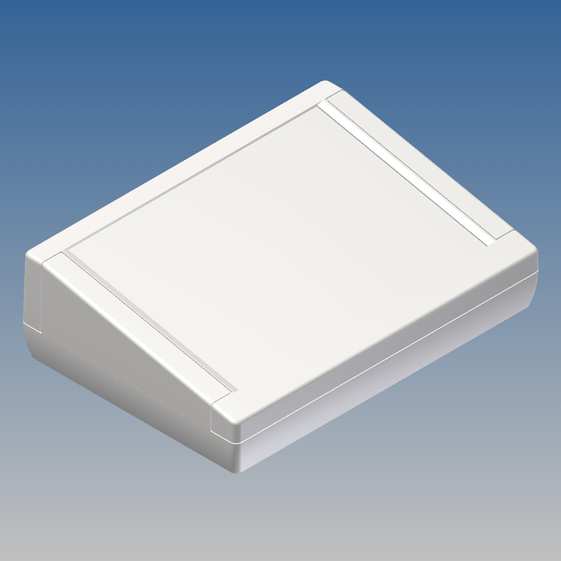

TKK11SP.7 | 188,5 | 133,5 | 56,5 |
9002 |
L320 | 176 | 119 | 4 | - |
APTK MT2 |
PDF DWG |
|
|

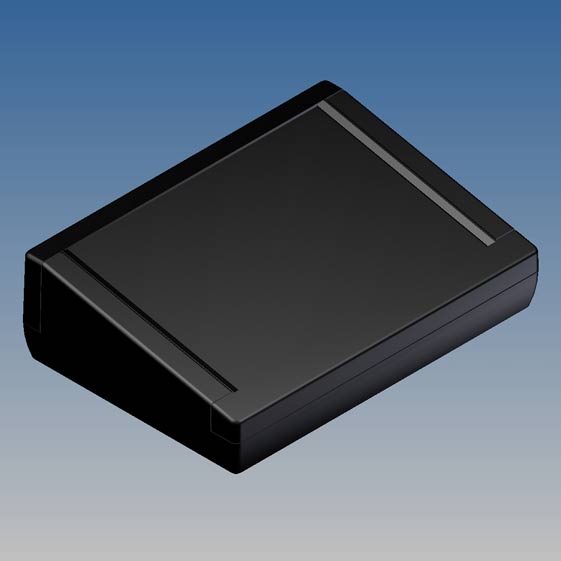

TKK11SP.9 | 188,5 | 133,5 | 56,5 |
9004 |
P2H-AT | 176 | 119 | 4 | - |
APTK MT2 |
PDF DWG |
|
|

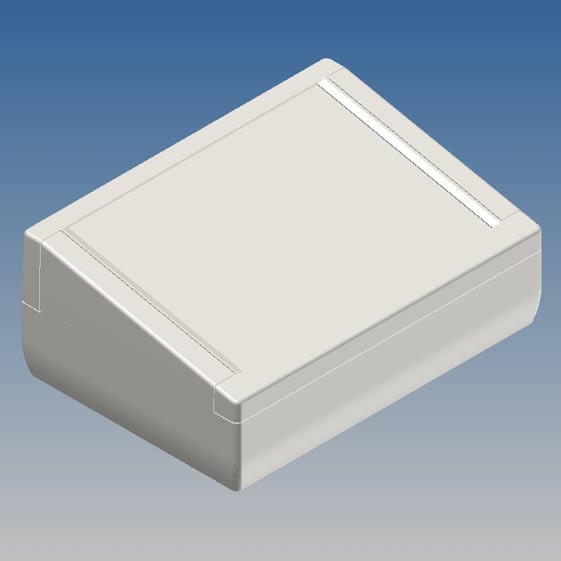

TKK33SP.7 | 188,5 | 133,5 | 76,5 |
9002 |
L320 | 176 | 119 | 4 | - |
MT2 |
PDF DWG |
|
|
TKK33SP.9 | 188,5 | 133,5 | 76,5 |
9004 |
P2H-AT | 176 | 119 | 4 | - |
MT2 |
PDF DWG |
12 product families, 150 series. You can't find what you're looking for? Contact us
