TK

Description

ABS enclosures with a 1.8 mm recessed area suitable for a keypad membrane or an aluminium panel. Base and cover have integral PCB guides (Eurocard 100 x 160 mm) and mounting studs. Matt surface finish. The models with “KK” have an IP65 sealing kit. Closing by four screws. Upon request aluminium panel (Mod. APTK), ABS wall mounting tabs (Mod. MT2).

Products

Model L (mm) W (mm) H (mm) Color (Ral) Material MAX PCB L (mm) MAX PCB W (mm) Screws Battery Accessories Drawings Other
TK11.7 188,5 133,5 39,5 9002
 L320 176 119 4 - APTK
MT2
 PDF
DWG
View
  • Color (Ral): 9002
  • Material: L320
  • MAX PCB L (mm): 176
  • MAX PCB W (mm): 119
  • Screws: 4
  • Battery: -
  • Accessories: APTK MT2
  • Drawings:  PDF  DWG
TK11.9 188,5 133,5 39,5 9004
 P2H-AT 176 119 4 - APTK
MT2
 PDF
DWG
View

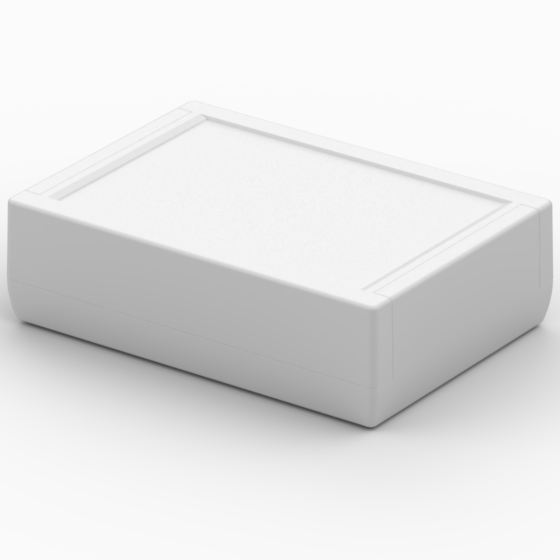

TK22.7 188,5 133,5 55,5 9002
 L320 176 119 4 - APTK
MT2
 PDF
DWG
View
  • Color (Ral): 9002
  • Material: L320
  • MAX PCB L (mm): 176
  • MAX PCB W (mm): 119
  • Screws: 4
  • Battery: -
  • Accessories: APTK MT2
  • Drawings:  PDF  DWG
TK22.9 188,5 133,5 55,5 9004
 P2H-AT 176 119 4 - APTK
MT2
 PDF
DWG
View

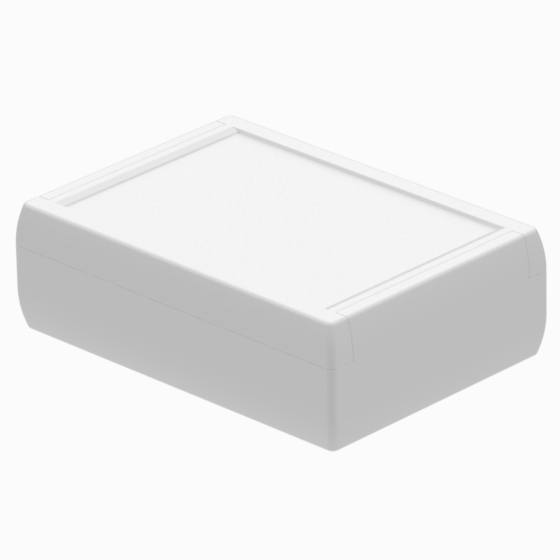

TK33.7 188,5 133,5 59 9002
 L320 176 119 4 - MT2
 PDF
DWG
View
  • Color (Ral): 9002
  • Material: L320
  • MAX PCB L (mm): 176
  • MAX PCB W (mm): 119
  • Screws: 4
  • Battery: -
  • Accessories: MT2
  • Drawings:  PDF  DWG

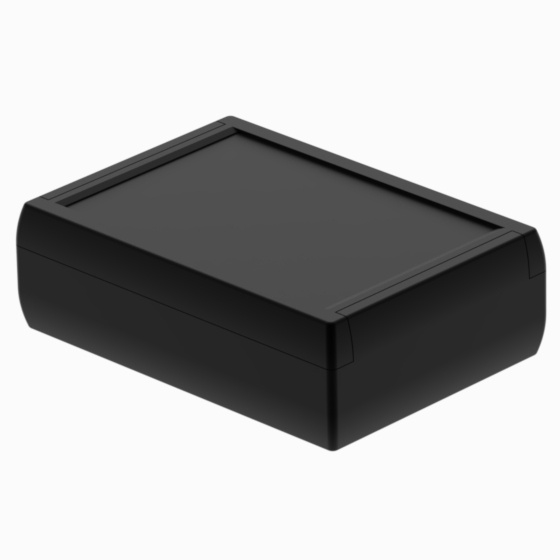

TK33.9 188,5 133,5 59 9004
 P2H-AT 176 119 4 - MT2
 PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 176
  • MAX PCB W (mm): 119
  • Screws: 4
  • Battery: -
  • Accessories: MT2
  • Drawings:  PDF  DWG

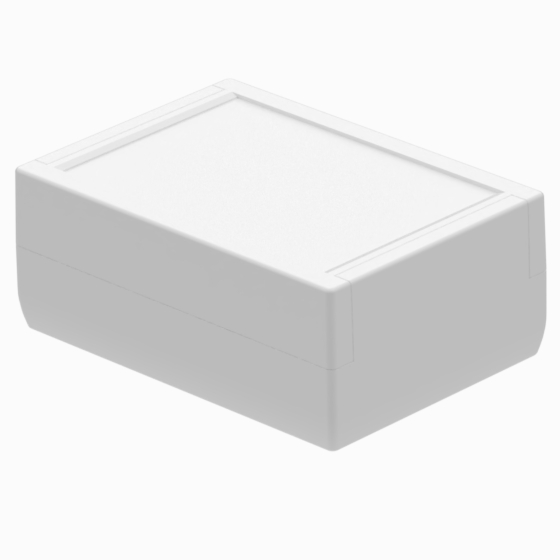

TK44.7 188,5 133,5 75,5 9002
 L320 176 119 4 - MT2
 PDF
DWG
View
  • Color (Ral): 9002
  • Material: L320
  • MAX PCB L (mm): 176
  • MAX PCB W (mm): 119
  • Screws: 4
  • Battery: -
  • Accessories: MT2
  • Drawings:  PDF  DWG

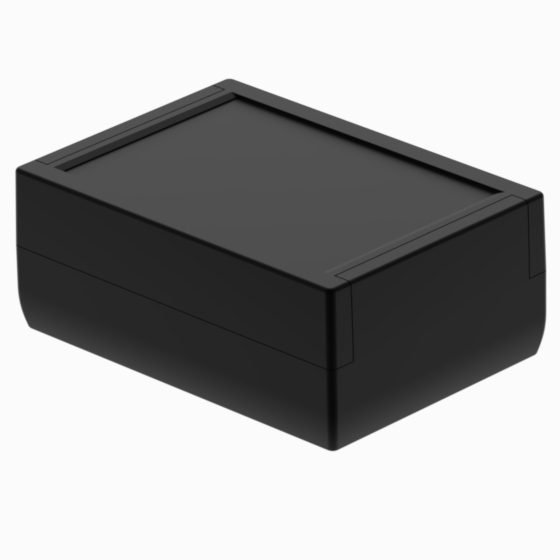

TK44.9 188,5 133,5 75,5 9004
 P2H-AT 176 119 4 - MT2
 PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 176
  • MAX PCB W (mm): 119
  • Screws: 4
  • Battery: -
  • Accessories: MT2
  • Drawings:  PDF  DWG

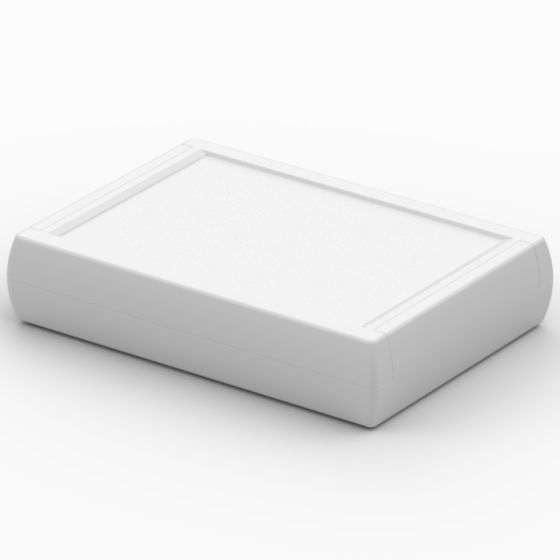

TKK11.7 188,5 133,5 39,5 9002
 L320 176 119 4 - APTK
MT2
 PDF
DWG
View
  • Color (Ral): 9002
  • Material: L320
  • MAX PCB L (mm): 176
  • MAX PCB W (mm): 119
  • Screws: 4
  • Battery: -
  • Accessories: APTK MT2
  • Drawings:  PDF  DWG

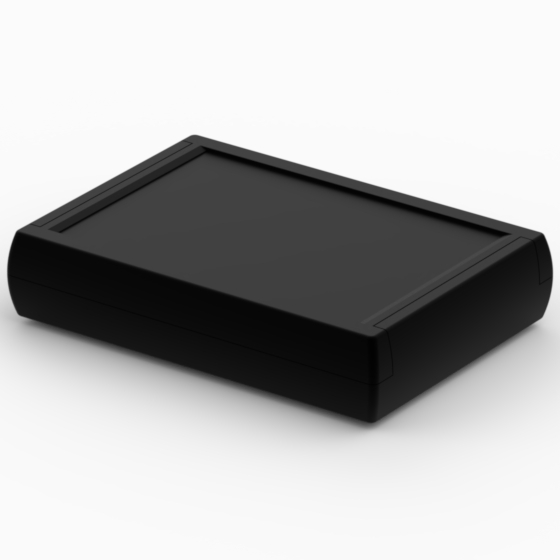

TKK11.9 188,5 133,5 39,5 9004
 P2H-AT 176 119 4 - APTK
MT2
 PDF
DWG
View
TKK22.7 188,5 133,5 55,5 9002
 L320 176 119 4 - APTK
MT2
 PDF
DWG
View
  • Color (Ral): 9002
  • Material: L320
  • MAX PCB L (mm): 176
  • MAX PCB W (mm): 119
  • Screws: 4
  • Battery: -
  • Accessories: APTK MT2
  • Drawings:  PDF  DWG

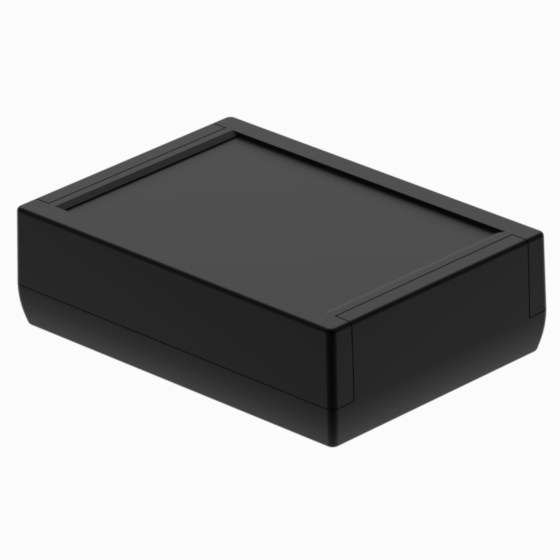

TKK22.9 188,5 133,5 55,5 9004
 P2H-AT 176 119 4 - APTK
MT2
 PDF
DWG
View
TKK33.7 188,5 133,5 59 9002
 L320 176 119 4 - MT2
 PDF
DWG
View
  • Color (Ral): 9002
  • Material: L320
  • MAX PCB L (mm): 176
  • MAX PCB W (mm): 119
  • Screws: 4
  • Battery: -
  • Accessories: MT2
  • Drawings:  PDF  DWG
TKK33.9 188,5 133,5 59 9004
 P2H-AT 176 119 4 - MT2
 PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 176
  • MAX PCB W (mm): 119
  • Screws: 4
  • Battery: -
  • Accessories: MT2
  • Drawings:  PDF  DWG
TKK44.7 188,5 133,5 75,5 9002
 L320 176 119 4 - MT2
 PDF
DWG
View
  • Color (Ral): 9002
  • Material: L320
  • MAX PCB L (mm): 176
  • MAX PCB W (mm): 119
  • Screws: 4
  • Battery: -
  • Accessories: MT2
  • Drawings:  PDF  DWG
TKK44.9 188,5 133,5 75,5 9004
 P2H-AT 176 119 4 - MT2
 PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 176
  • MAX PCB W (mm): 119
  • Screws: 4
  • Battery: -
  • Accessories: MT2
  • Drawings:  PDF  DWG
