Description
Molded ABS enclosures with matte surfaces and a simple 4-screw closure. Internal PCB mounting points are provided. Models marked "-B" feature a 9V battery compartment with a sliding cover. Wall-mounting brackets (Mod. MT1) are available upon request.
Details
Products
| Model | L (mm) | W (mm) | H (mm) | Color (Ral) | Material | MAX PCB L (mm) | MAX PCB W (mm) | Screws | Battery | Accessories | Drawings | Other | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

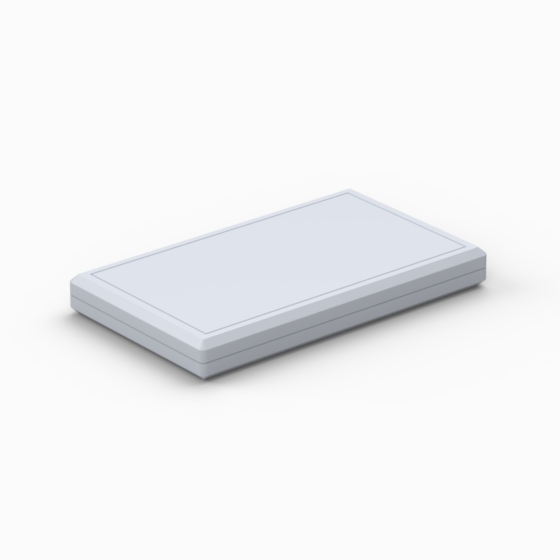

450F.5 | 145 | 85 | 17 |
9018 |
AG-ATY | 135,2 | 75,2 | 4 | - |
M M58 M59 MT1 |
PDF DWG |
|
|

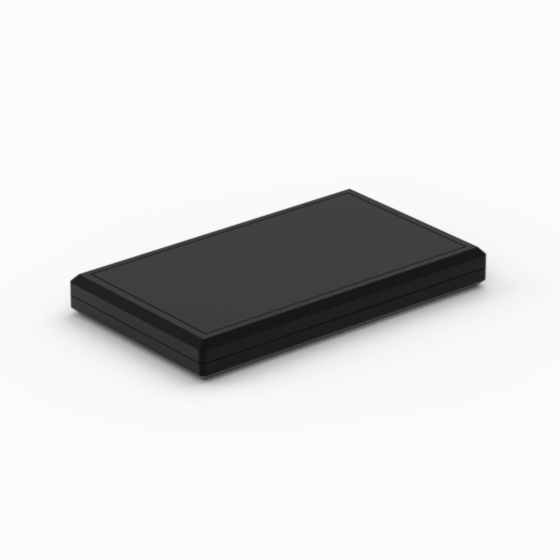

450F.9 | 145 | 85 | 17 |
9004 |
TERLURAN GP-35 | 135,2 | 75,2 | 4 | - |
M M58 M59 MT1 |
PDF DWG |
|
|

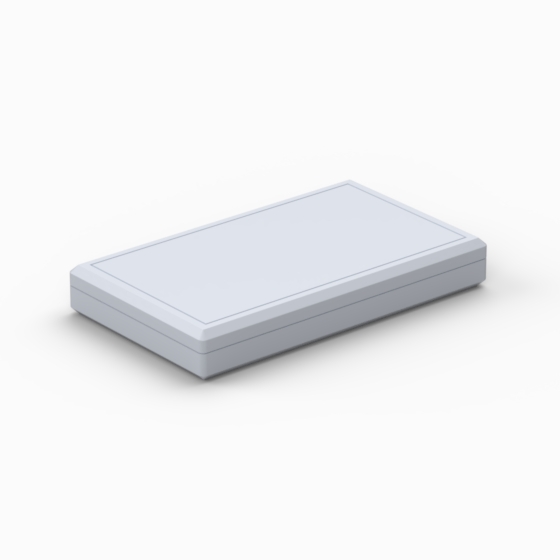

550F.5 | 145 | 85 | 21 |
9018 |
AG-ATY | 135,2 | 75,2 | 4 | - |
M M58 M59 MT1 |
PDF DWG |
|
|

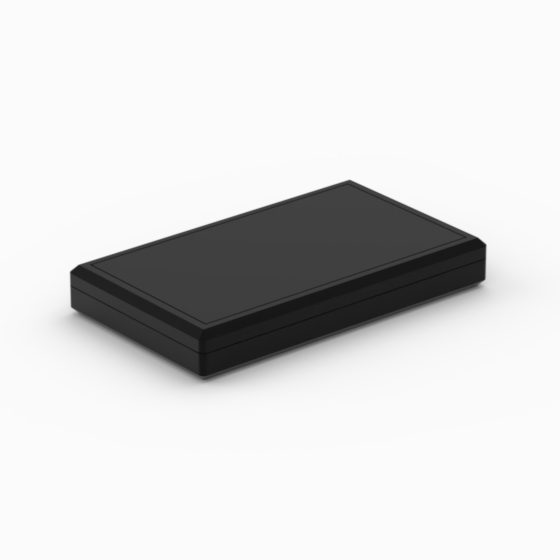

550F.9 | 145 | 85 | 21 |
9004 |
TERLURAN GP-35 | 135,2 | 75,2 | 4 | - |
M M58 M59 MT1 |
PDF DWG |
|
|

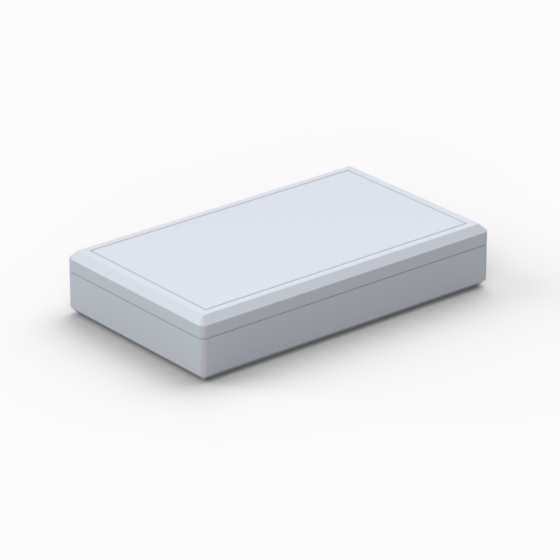

660F.5 | 145 | 85 | 27 |
9018 |
AG-ATY | 135,2 | 75,2 | 4 | - |
M M58 M59 MT1 |
PDF DWG |
|
|

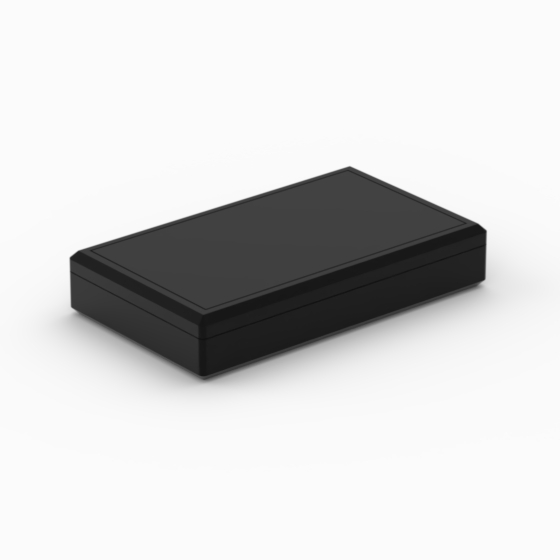

660F.9 | 145 | 85 | 27 |
9004 |
TERLURAN GP-35 | 135,2 | 75,2 | 4 | - |
M M58 M59 MT1 |
PDF DWG |
|
|

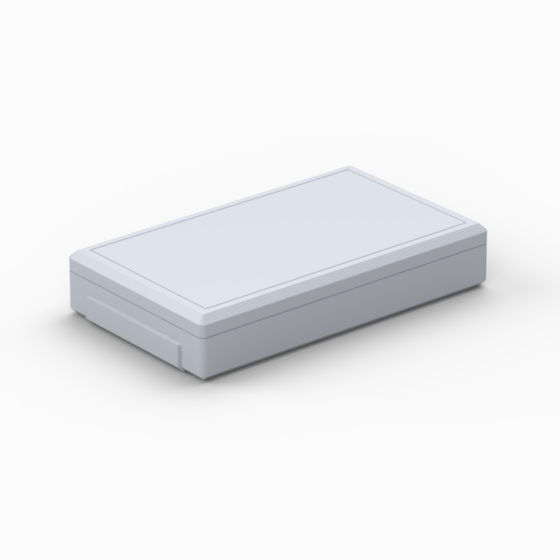

660F-B.5 | 145 | 85 | 27 |
9018 |
AG-ATY | 97,6 | 75,2 | 4 | 1 x 9V |
AB9 M M58 M59 MT1 |
PDF DWG |
|
|

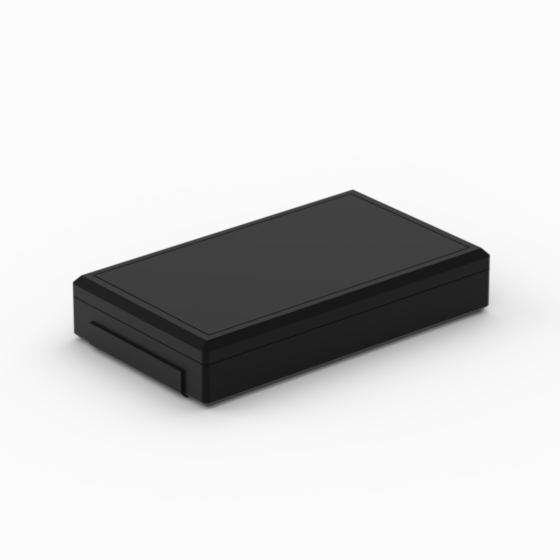

660F-B.9 | 145 | 85 | 27 |
9004 |
TERLURAN GP-35 | 97,6 | 75,2 | 4 | 1 x 9V |
AB9 M M58 M59 MT1 |
PDF DWG |
|
|

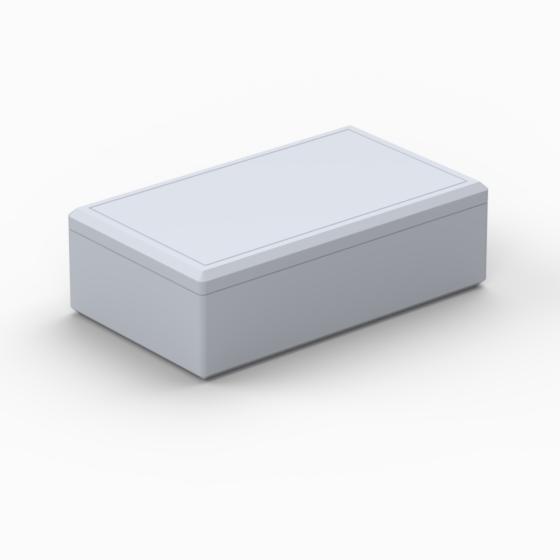

770F.5 | 145 | 85 | 45 |
9018 |
AG-ATY | 135,2 | 75,2 | 4 | - |
M M58 M59 MT1 |
PDF DWG |
|
|

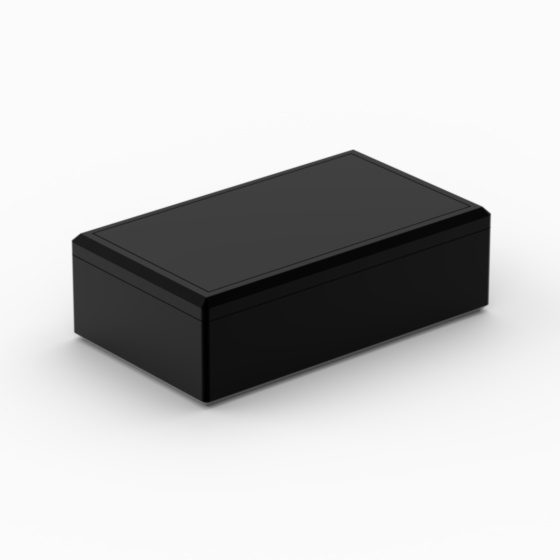

770F.9 | 145 | 85 | 45 |
9004 |
TERLURAN GP-35 | 135,2 | 75,2 | 4 | - |
M M58 M59 MT1 |
PDF DWG |
