TBT-B

Description

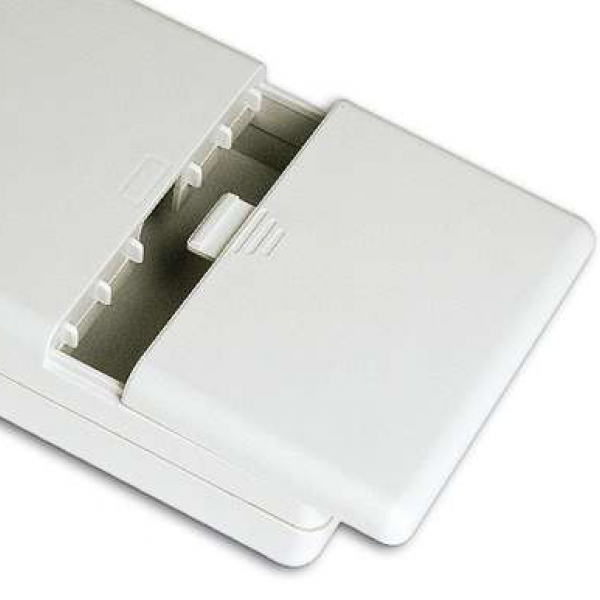

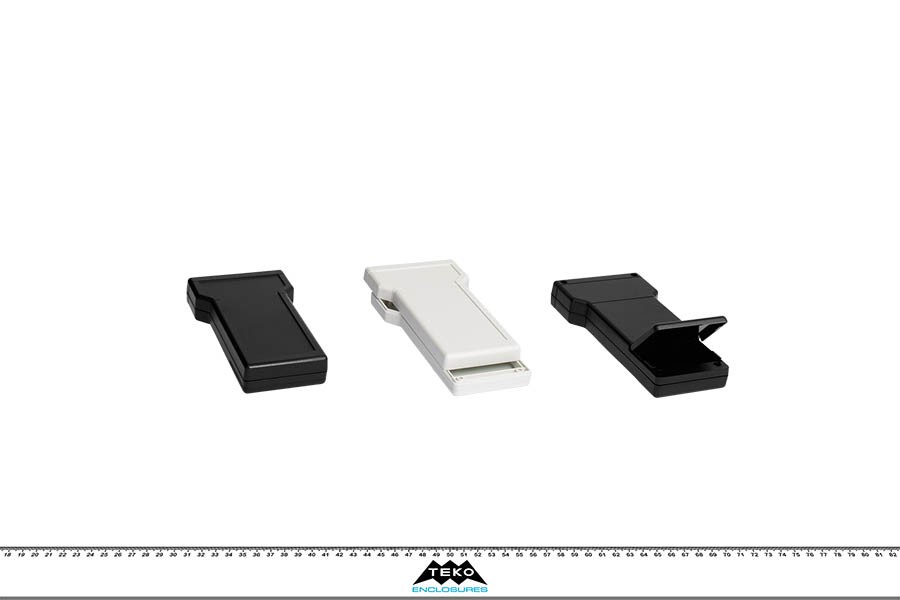

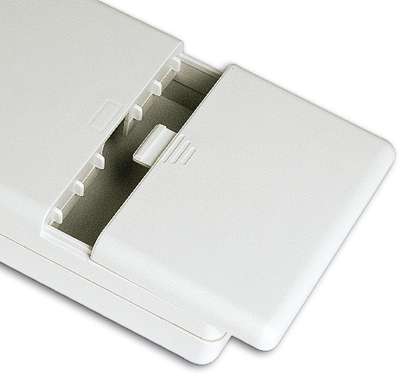

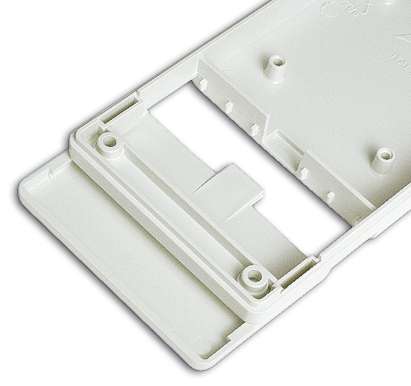

ABS enclosures ergonomically designed for a comfortable fit into the user’s hand. Perfect for instrument or mobile data enclosures requiring a keypad and display. Base and cover have integral PCB guides and mounting studs. Matt surface finished. Battery compartment with snap-on lid. Closing by four screws.

Details

Products

Model L (mm) W (mm) H (mm) Color (Ral) Material MAX PCB L (mm) MAX PCB W (mm) Screws Battery Accessories Drawings Other

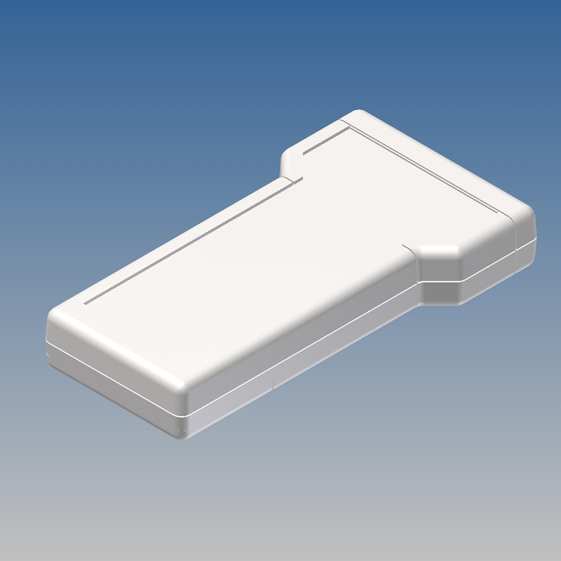

TBT-B.7 163 88 25 9002
 L320 110 79/59 4 - PDF
DWG
View
  • Color (Ral): 9002
  • Material: L320
  • MAX PCB L (mm): 110
  • MAX PCB W (mm): 79/59
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG

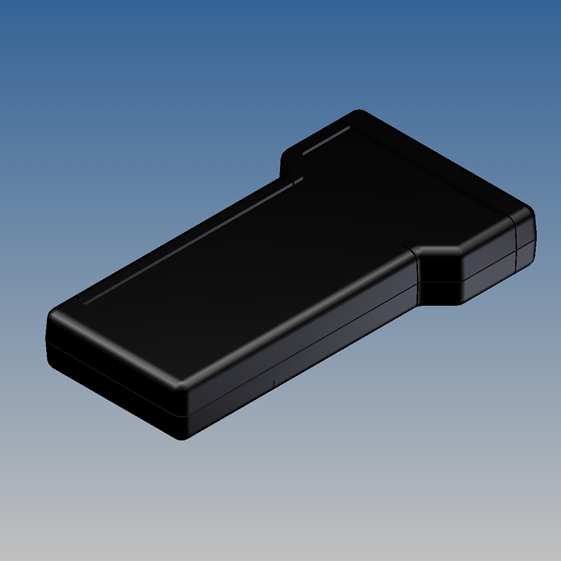

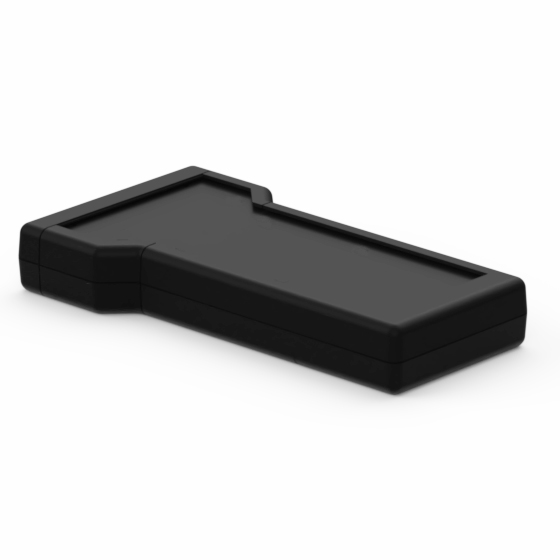

TBT-B.9 163 88 25 9004
 P2H-AT 110 79/59 4 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 110
  • MAX PCB W (mm): 79/59
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG
