TEKAL 2

Family Aluminium - Electronic enclosures - Metal

Description

Extruded aluminium cases with high quality painted finishing. Two ABS front panels, internal slots for PCB’s and a recessed area for a keypad membrane. The model with “-B” has a battery compartment for two 1,5V mignon-cells (AA) or one 9V battery (PP3). Twelve standard models are available with different sizes. Closing by four screws.

Details

Products

Model L (mm) W (mm) H (mm) Color (Ral) Material MAX PCB L (mm) MAX PCB W (mm) Screws Battery Accessories Drawings Other

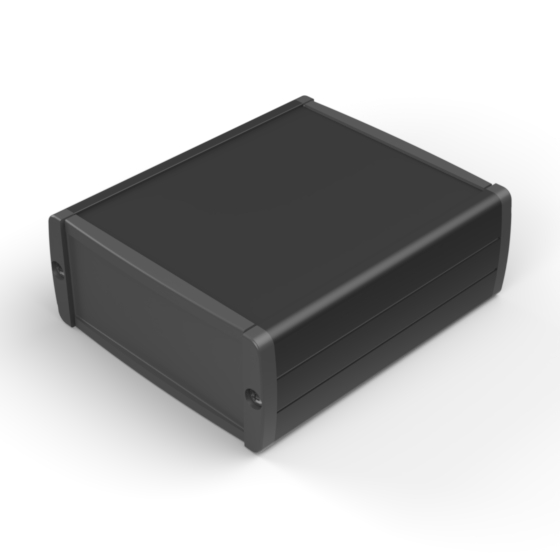

TEKAL-21.29 100 85,8 36,9 9004 7012
ALLOY 6060  -  1640 AS 90 80,5 4 - ALP-2
PDF
DWG
View

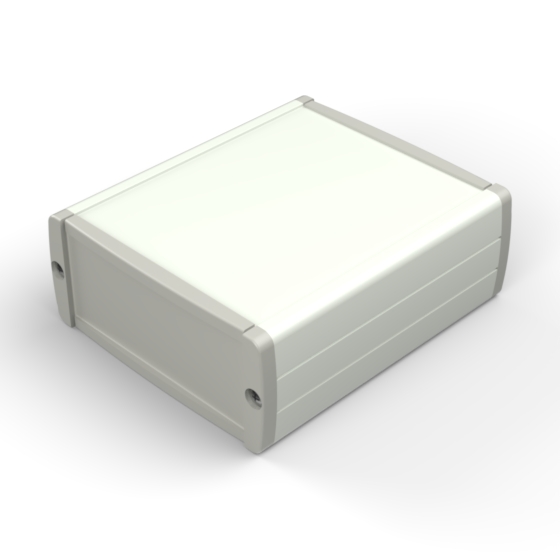

TEKAL-21.30 100 85,8 36,9 9002 9018
ALLOY 6060  -  1640 AS 90 80,5 4 - ALP-2
PDF
DWG
View

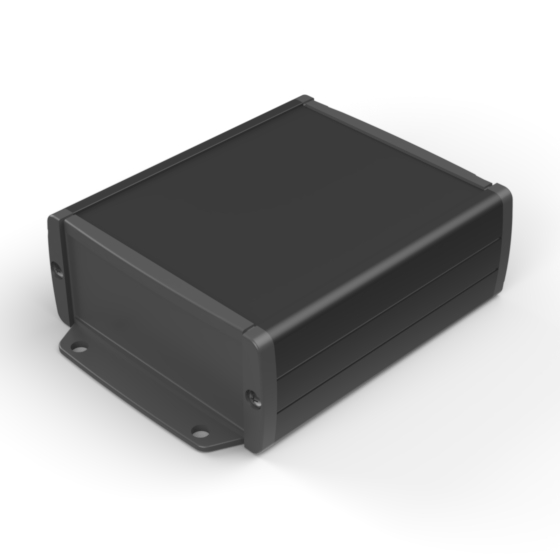

TEKAL-21/E.29 100 85,8 36,9 9004 7012
ALLOY 6060  -  1640 AS 90 80,5 4 - ALP-2
PDF
DWG
View

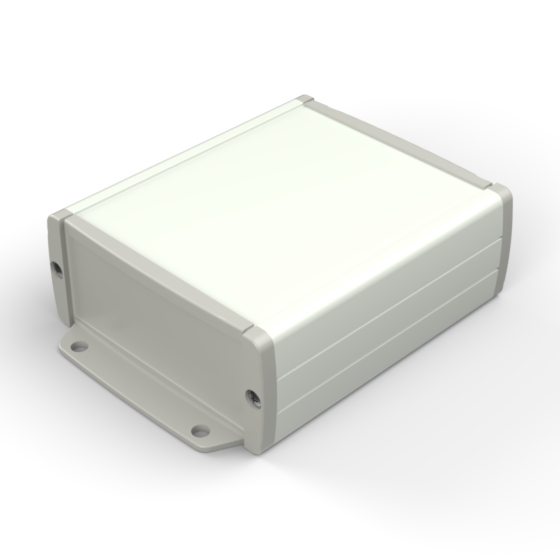

TEKAL-21/E.30 100 85,8 36,9 9002 9018
ALLOY 6060  -  1640 AS 90 80,5 4 - ALP-2
PDF
DWG
View

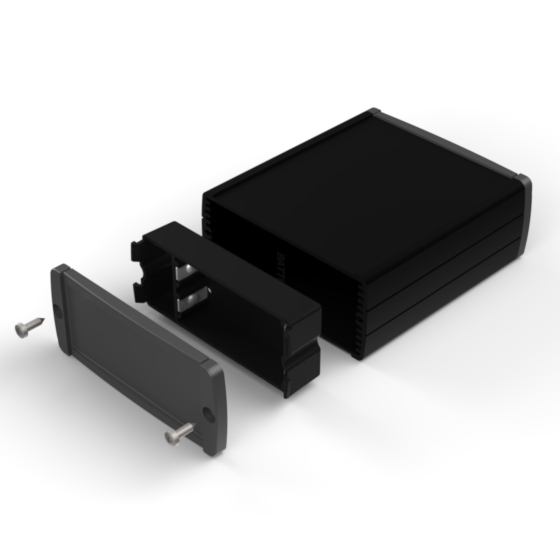

TEKAL-21B.29 100 85,8 36,9 9004 7012
ALLOY 6060  -  1640 AS 72 80,5 4 2 x AA / 1 x 9V ALP-2
PDF
DWG
View

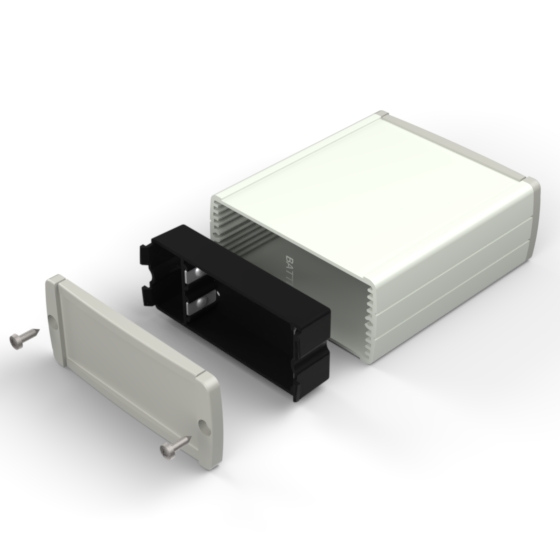

TEKAL-21B.30 100 85,8 36,9 9002 9018
ALLOY 6060  -  1640 AS 72 80,5 4 2 x AA / 1 x 9V ALP-2
PDF
DWG
View

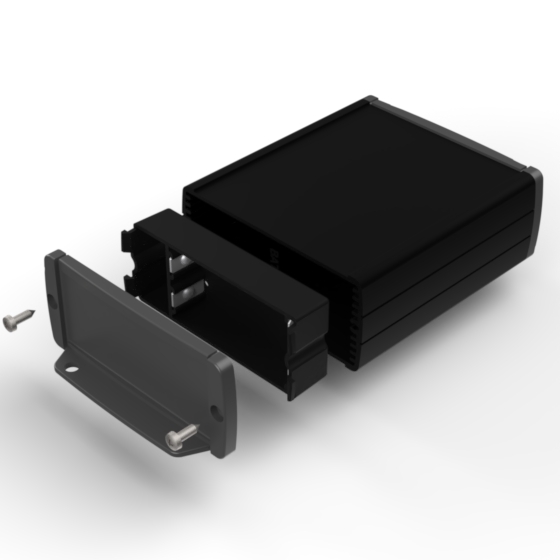

TEKAL-21B/E.29 100 85,8 36,9 9004 7012
ALLOY 6060  -  1640 AS 72 80,5 4 2 x AA / 1 x 9V ALP-2
PDF
DWG
View
TEKAL-21B/E.30 100 85,8 36,9 9002 9018
ALLOY 6060  -  1640 AS 72 80,5 4 2 x AA / 1 x 9V ALP-2
PDF
DWG
View

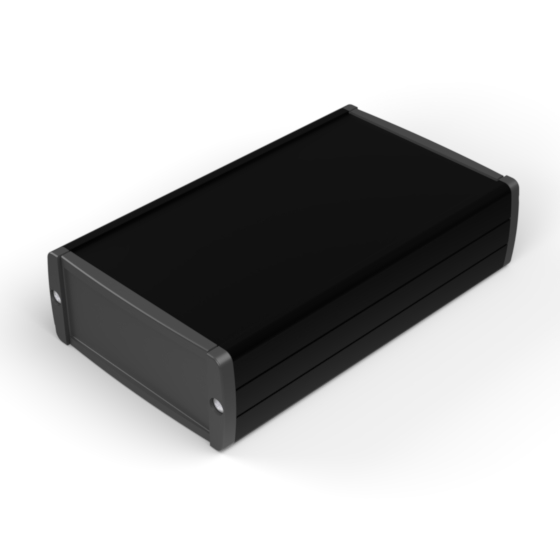

TEKAL-22.29 145 85,8 36,9 9004 7012
ALLOY 6060  -  1640 AS 135 80,5 4 - ALP-2
M
M58
M59
PDF
DWG
View

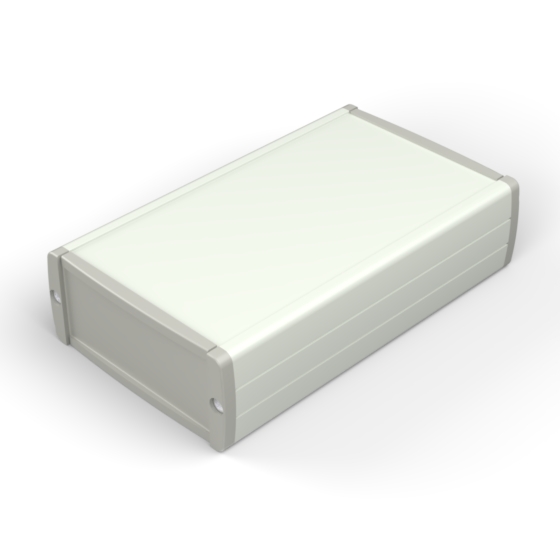

TEKAL-22.30 145 85,8 36,9 9002 9018
ALLOY 6060  -  1640 AS 135 80,5 4 - ALP-2
M
M58
M59
PDF
DWG
View

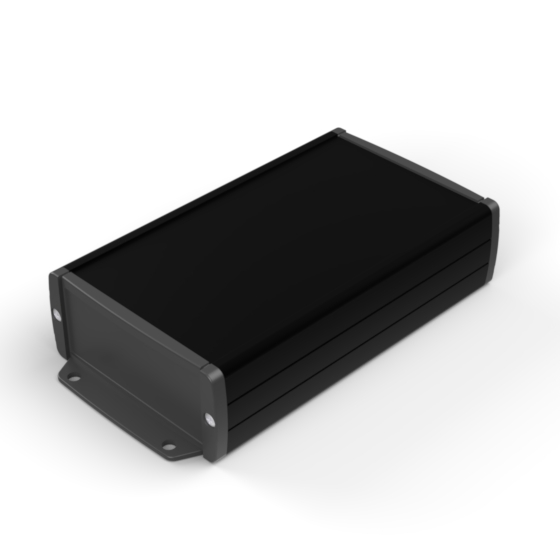

TEKAL-22/E.29 145 85,8 36,9 9004 7012
ALLOY 6060  -  1640 AS 135 80,5 4 - ALP-2
PDF
DWG
View

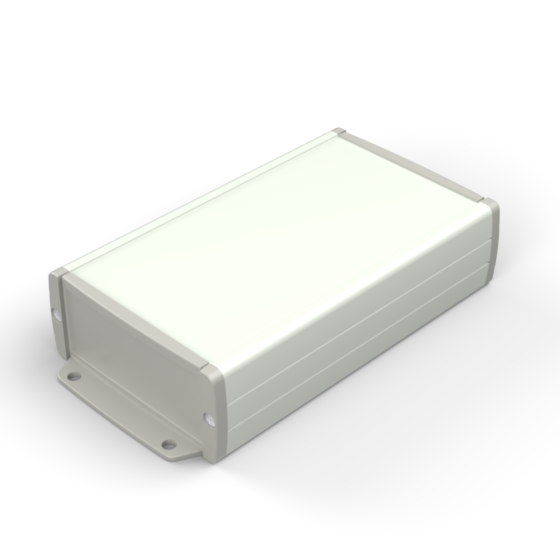

TEKAL-22/E.30 145 85,8 36,9 9002 9018
ALLOY 6060  -  1640 AS 135 80,5 4 - ALP-2
PDF
DWG
View

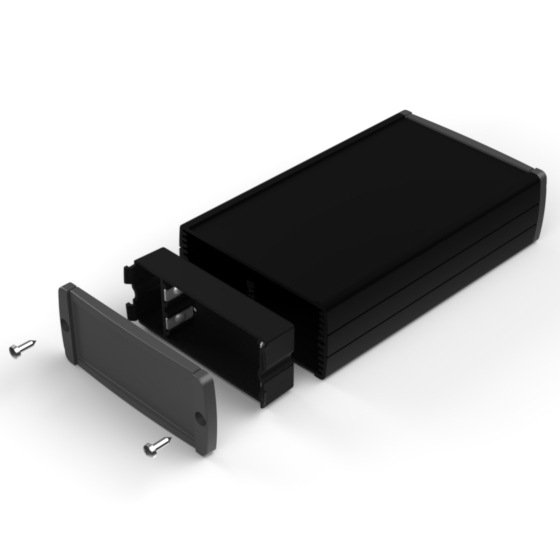

TEKAL-22B.29 145 85,8 36,9 9004 7012
ALLOY 6060  -  1640 AS 117 80,5 4 2 x AA / 1 x 9V ALP-2
M
M58
M59
PDF
DWG
View

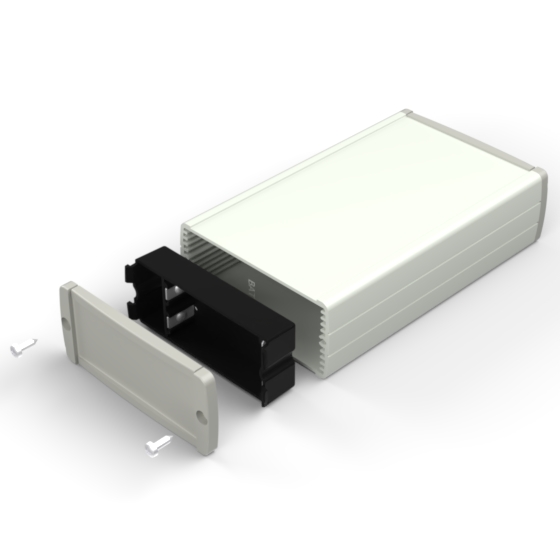

TEKAL-22B.30 145 85,8 36,9 9002 9018
ALLOY 6060  -  1640 AS 117 80,5 4 2 x AA / 1 x 9V ALP-2
M
M58
M59
PDF
DWG
View

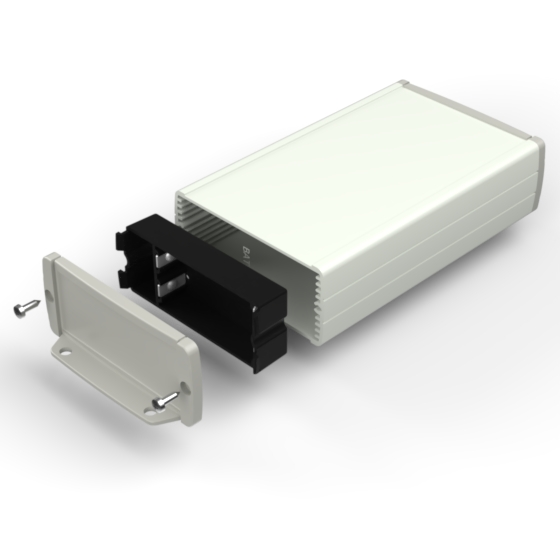

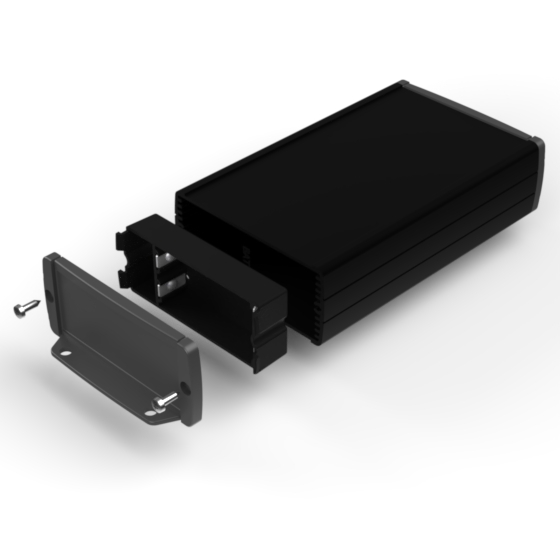

TEKAL-22B/E.29 145 85,8 36,9 9004 7012
ALLOY 6060  -  1640 AS 117 80,5 4 2 x AA / 1 x 9V ALP-2
PDF
DWG
View
TEKAL-22B/E.30 145 85,8 36,9 9002 9018
ALLOY 6060  -  1640 AS 117 80,5 4 2 x AA / 1 x 9V ALP-2
PDF
DWG
View

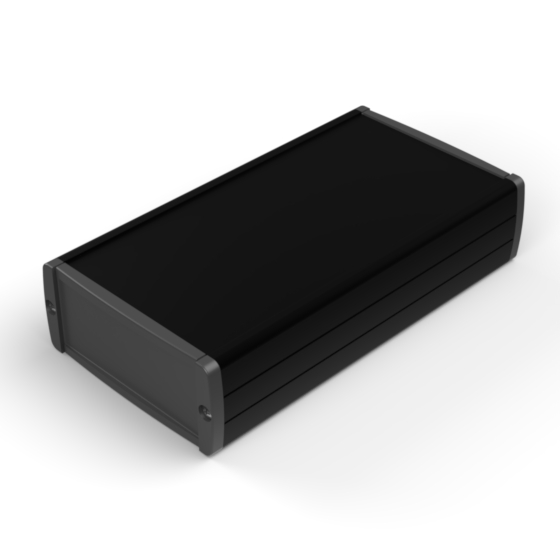

TEKAL-23.29 160 85,8 36,9 9004 7012
ALLOY 6060  -  1640 AS 150 80,5 4 - ALP-2
PDF
DWG
View

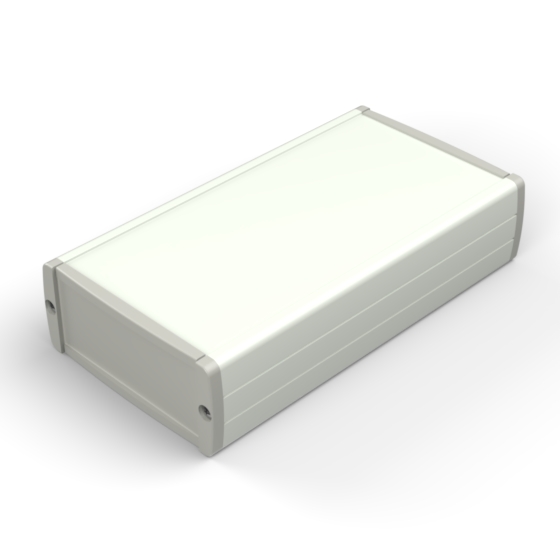

TEKAL-23.30 160 85,8 36,9 9002 9018
ALLOY 6060  -  1640 AS 150 80,5 4 - ALP-2
PDF
DWG
View

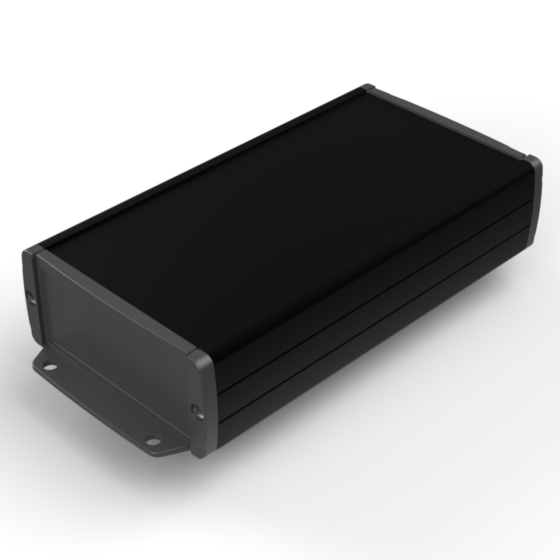

TEKAL-23/E.29 160 85,8 36,9 9004 7012
ALLOY 6060  -  1640 AS 150 80,5 4 - ALP-2
PDF
DWG
View

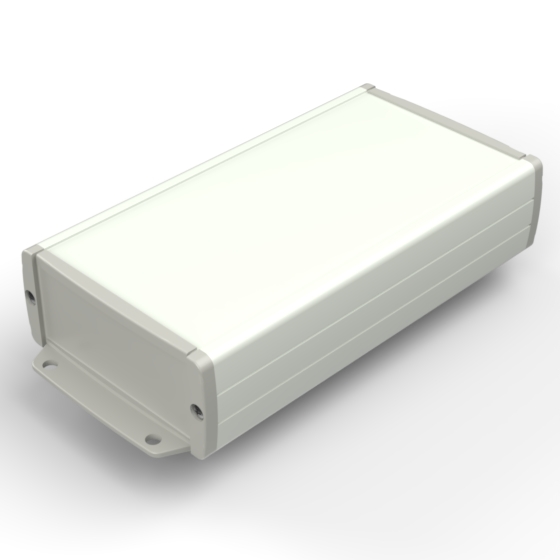

TEKAL-23/E.30 160 85,8 36,9 9002 9018
ALLOY 6060  -  1640 AS 150 80,5 4 - ALP-2
PDF
DWG
View

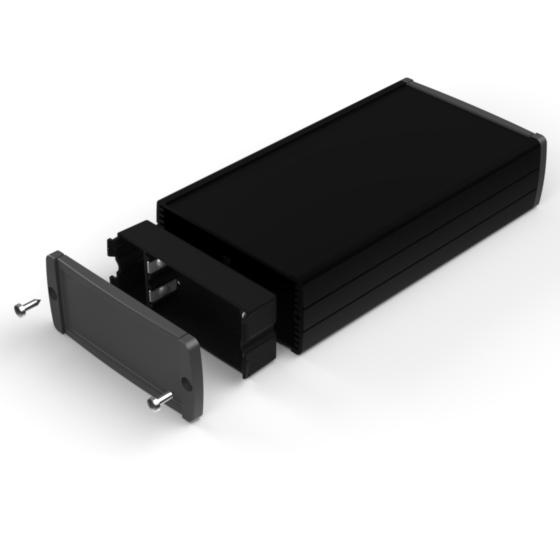

TEKAL-23B.29 160 85,8 36,9 9004 7012
ALLOY 6060  -  1640 AS 132 80,5 4 2 x AA / 1 x 9V ALP-2
PDF
DWG
View
TEKAL-23B.30 160 85,8 36,9 9002 9018
ALLOY 6060  -  1640 AS 132 80,5 4 2 x AA / 1 x 9V ALP-2
PDF
DWG
View

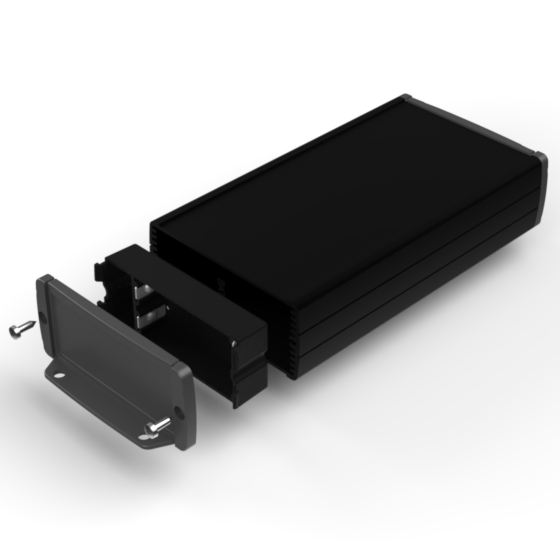

TEKAL-23B/E.29 160 85,8 36,9 9004 7012
ALLOY 6060  -  1640 AS 132 80,5 4 2 x AA / 1 x 9V ALP-2
PDF

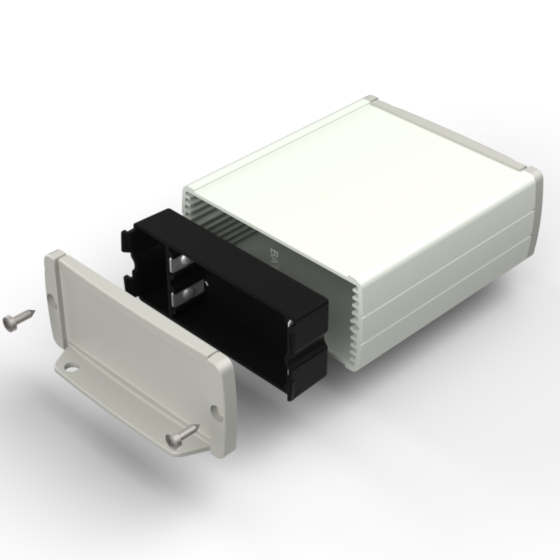

DWG
View

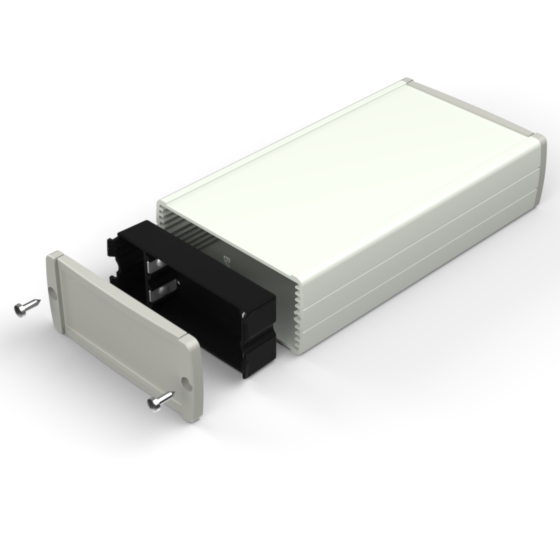

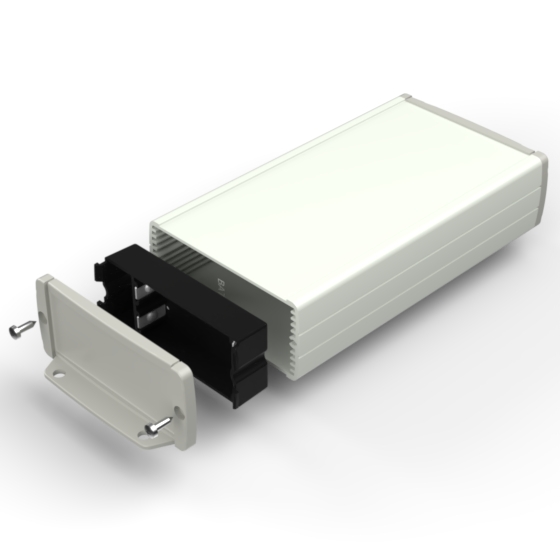

TEKAL-23B/E.30 160 85,8 36,9 9002 9018
ALLOY 6060  -  1640 AS 132 80,5 4 2 x AA / 1 x 9V ALP-2
PDF
DWG
View
