Description
Compact extruded aluminium case with powder coating. Two aluminium front cover panels with two rubber sealing kits to protect against water and from dust. Internal slots for PCB’s. Closing by eight screws.
Products
Model | L (mm) | W (mm) | H (mm) | Color (Ral) | Material | MAX PCB L (mm) | MAX PCB W (mm) | Screws | Battery | Accessories | Drawings | Other | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|

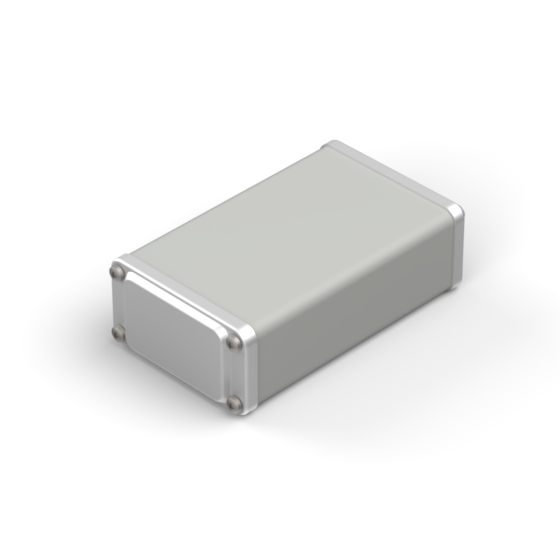

MTK465.1 | 68 | 43 | 23 |
9006 |
ALLOY 6060 | 65 | 39,4 | 8 | - |
PDF DWG |
View
|
||

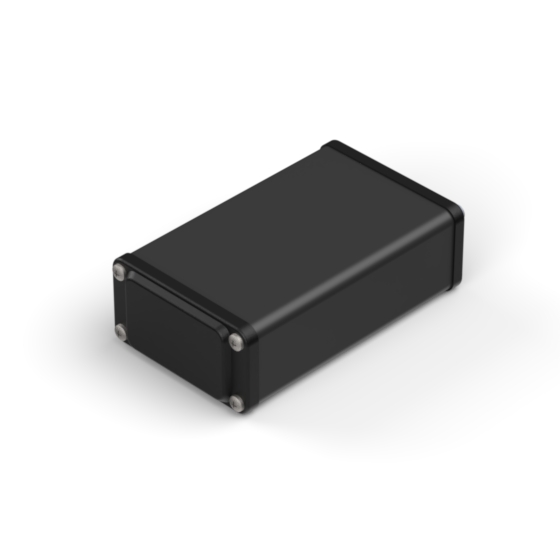

MTK465.9 | 68 | 43 | 23 |
9004 |
ALLOY 6060 | 65 | 39,4 | 8 | - |
PDF DWG |
View
|
||

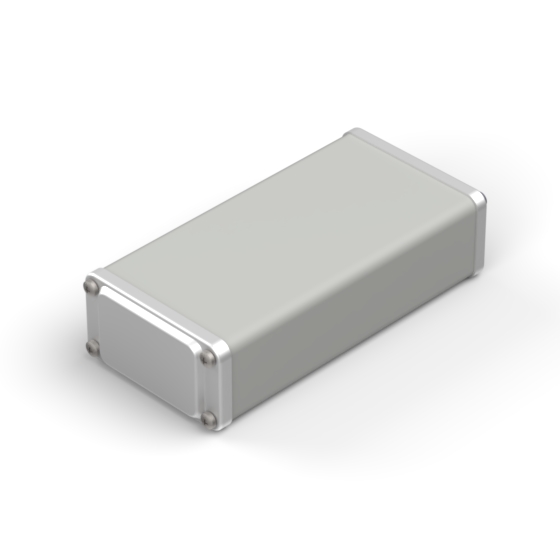

MTK480.1 | 83 | 43 | 23 |
9006 |
ALLOY 6060 | 80 | 39,4 | 8 | - |
PDF DWG |
View
|
||
MTK480.9 | 83 | 43 | 23 |
9004 |
ALLOY 6060 | 80 | 39,4 | 8 | - |
PDF DWG |
View
|
||

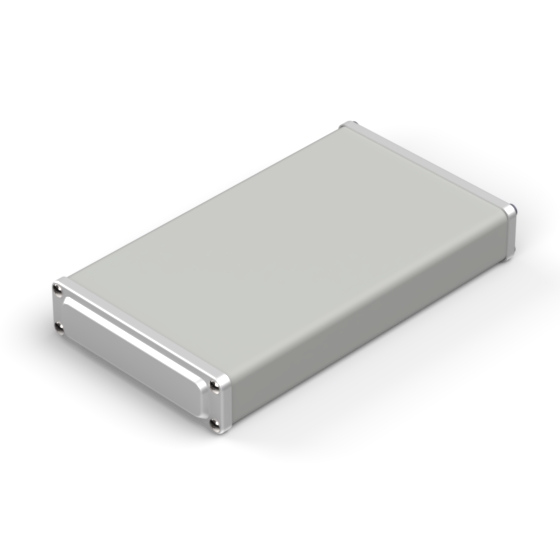

MTK6110.1 | 113 | 66 | 18 |
9006 |
ALLOY 6060 | 110 | 62,4 | 8 | - |
PDF DWG |
View
|
||

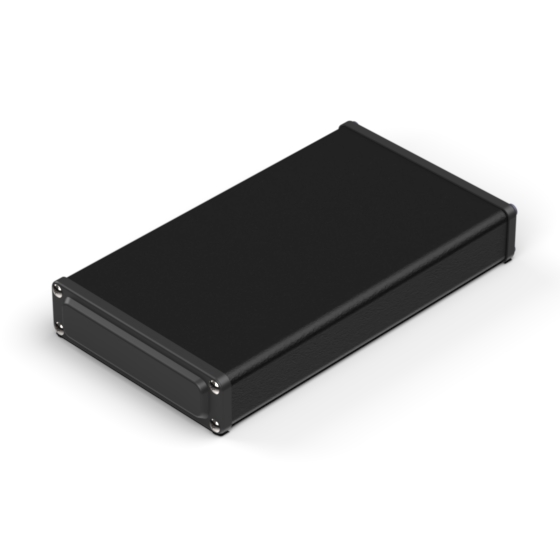

MTK6110.9 | 113 | 66 | 18 |
9004 |
ALLOY 6060 | 110 | 62,4 | 8 | - |
PDF DWG |
View
|
||

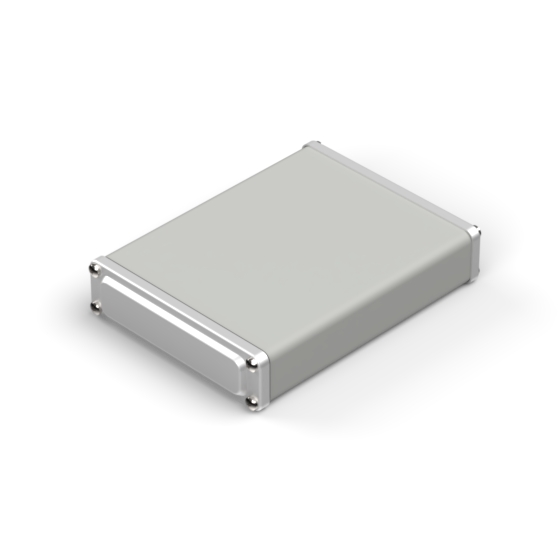

MTK680.1 | 83 | 66 | 18 |
9006 |
ALLOY 6060 | 80 | 62,4 | 8 | - |
PDF DWG |
View
|
||

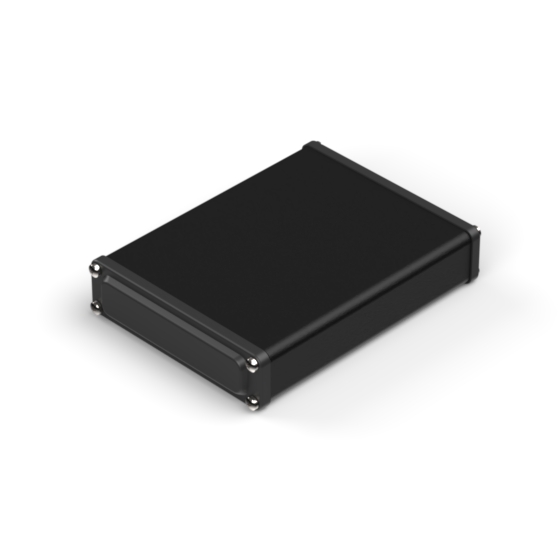

MTK680.9 | 83 | 66 | 18 |
9004 |
ALLOY 6060 | 80 | 62,4 | 8 | - |
PDF DWG |
View
|
12 product families, 152 series. You can't find what you're looking for? Contact us
