PROCESSOR 96

Family Keyboard - Electronic enclosures - Plastic

Description

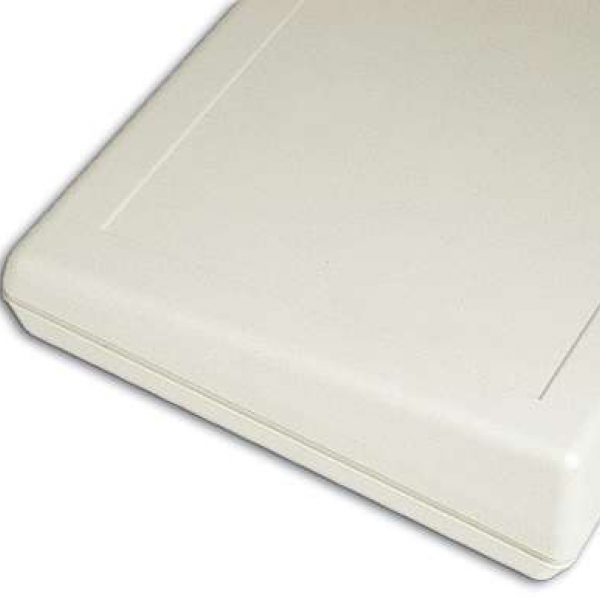

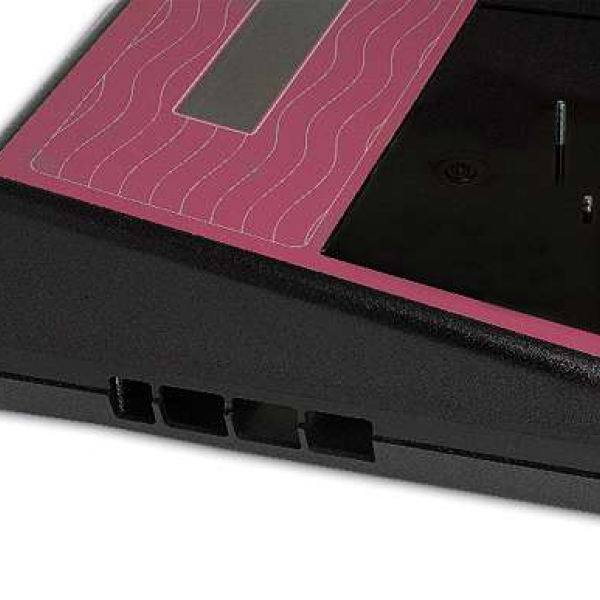

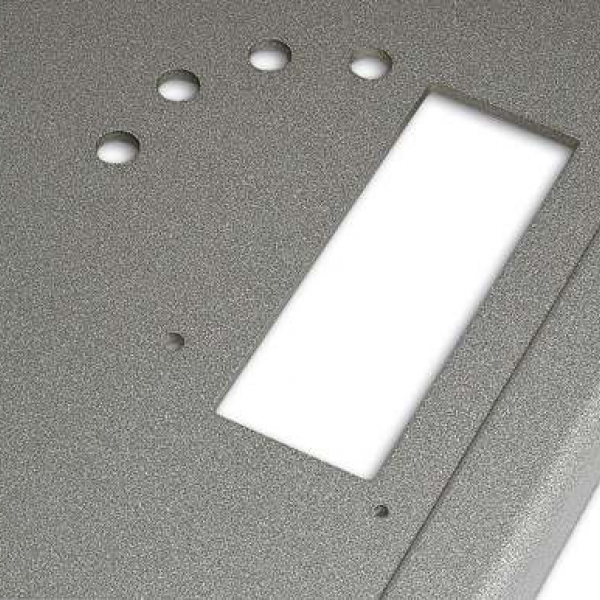

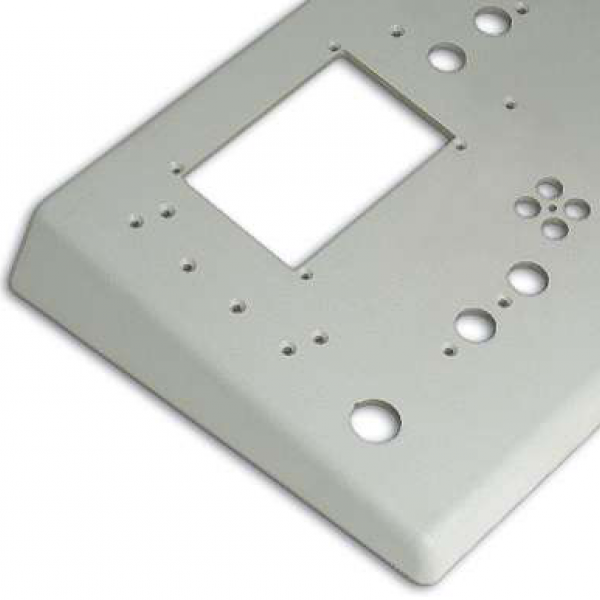

ABS cases with inclined cover. The base and the cover have integral PCB mounting studs. The models “PRO96” and “PRO96K” have the cover provided with a 1 mm recessed area for an easy assembly of membrane keyboards or aluminium panel. The model “PRO96K” has a IP65 sealing kit. Matt surface finish. Closing by four screws. Upon request aluminium panel (Mod. AP96).

Details

Products

Model L (mm) W (mm) H (mm) Color (Ral) Material MAX PCB L (mm) MAX PCB W (mm) Screws Battery Accessories Drawings Other

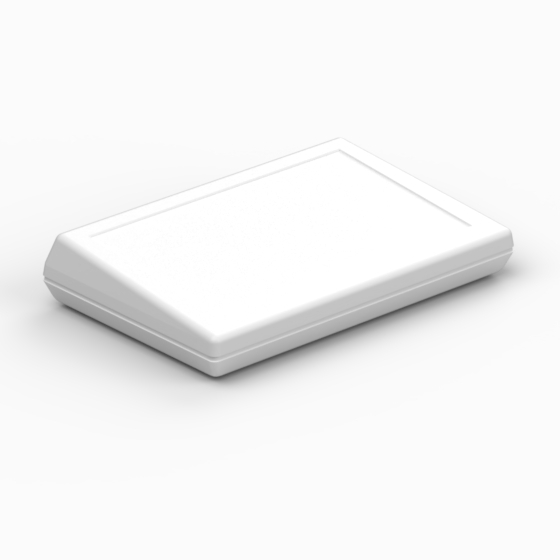

PRO96.7 320 210 62 9002
TR-UV 301 191 4 - AP96
PDF
DWG
View
  • Color (Ral): 9002
  • Material: TR-UV
  • MAX PCB L (mm): 301
  • MAX PCB W (mm): 191
  • Screws: 4
  • Battery: -
  • Accessories: AP96
  • Drawings:  PDF  DWG
PRO96.9 320 210 62 9004
P2H-AT 301 191 4 - AP96
PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 301
  • MAX PCB W (mm): 191
  • Screws: 4
  • Battery: -
  • Accessories: AP96
  • Drawings:  PDF  DWG
PRO96K.7 320 210 62 9002
TR-UV 301 191 4 - AP96
PDF
DWG
View
  • Color (Ral): 9002
  • Material: TR-UV
  • MAX PCB L (mm): 301
  • MAX PCB W (mm): 191
  • Screws: 4
  • Battery: -
  • Accessories: AP96
  • Drawings:  PDF  DWG

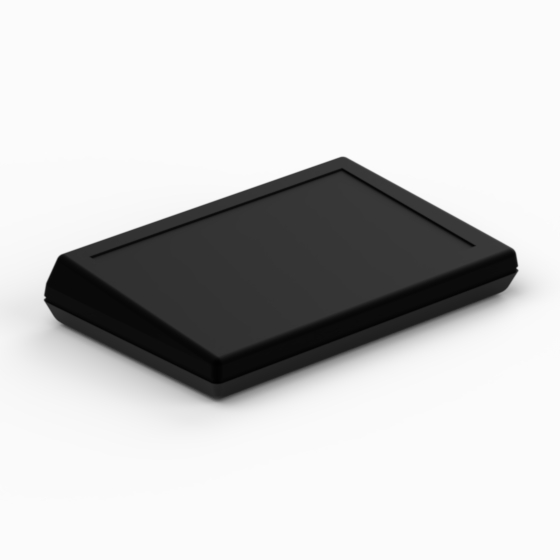

PRO96K.9 320 210 62 9004
P2H-AT 301 191 4 - AP96
PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 301
  • MAX PCB W (mm): 191
  • Screws: 4
  • Battery: -
  • Accessories: AP96
  • Drawings:  PDF  DWG
